Cold Formed Steel Moment Frames

The New Hardy Frame® Cold Formed Steel Moment and Picture Frames are the only pre-manufactured Cold Formed Steel Moment Frames in the Industry.

CFS Moment Frame        Applications        Accessories

Overview

THE FIRST AND ONLY PRE-MANUFACTURED COLD FORMED STEEL MOMENT FRAMES

Hardy Frame® introduces a family of Cold Formed Steel Moment Frames specifically designed for light construction.

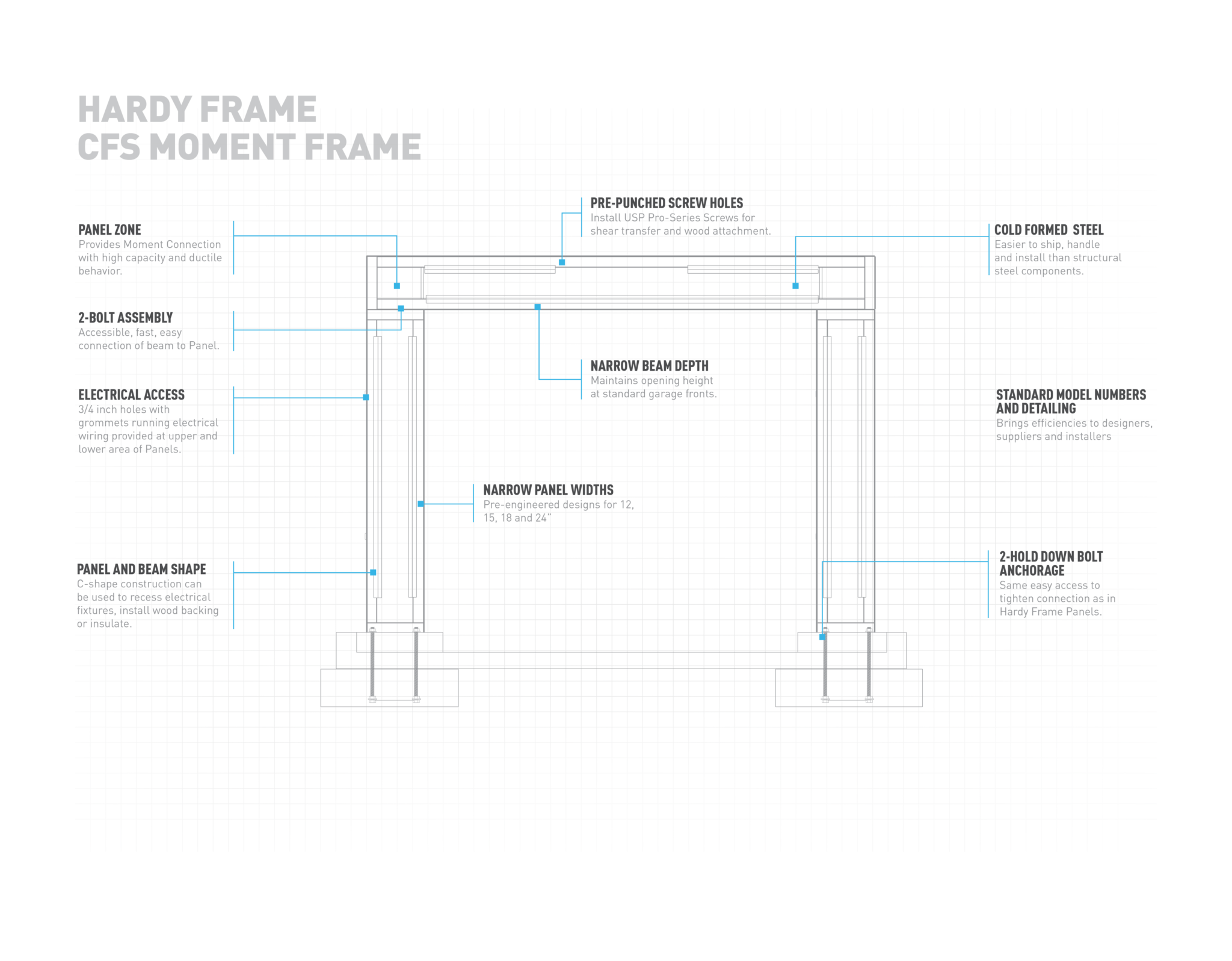

Hardy Frame CFS Moment Frame

The new Hardy Frame® CFS Moment Frame is a pre-engineered, pre-manufactured Moment Frame designed for narrow wall lengths with high capacities at significant cost savings over structural steel moment frames. The CFS Moment Frame is a standardized, mass-produced Moment Frame that is easy to ship, install, and inspect.

Cold Formed Steel Moment Frame (CFS)

  • Easier to ship, handle and install than structural steel components.
  • Narrow Panel Widths. Pre-engineered designs for 12, 15, 18 and 21˝.
  • Available in Back-to-Back configuration.
  • Narrow Beam Depth. Maintains opening height at standard garage fronts.



Cold Formed Steel Picture Frame (CFS)

  • Multi-Story Application. Able to stack up to 5-stories
  • Narrow Wall Sections. For applications in wood frame construction at large openings and end conditions.
  • “Self Reacting” Moment Frame. Distributes compression from high overturning forces without crushing wood below.

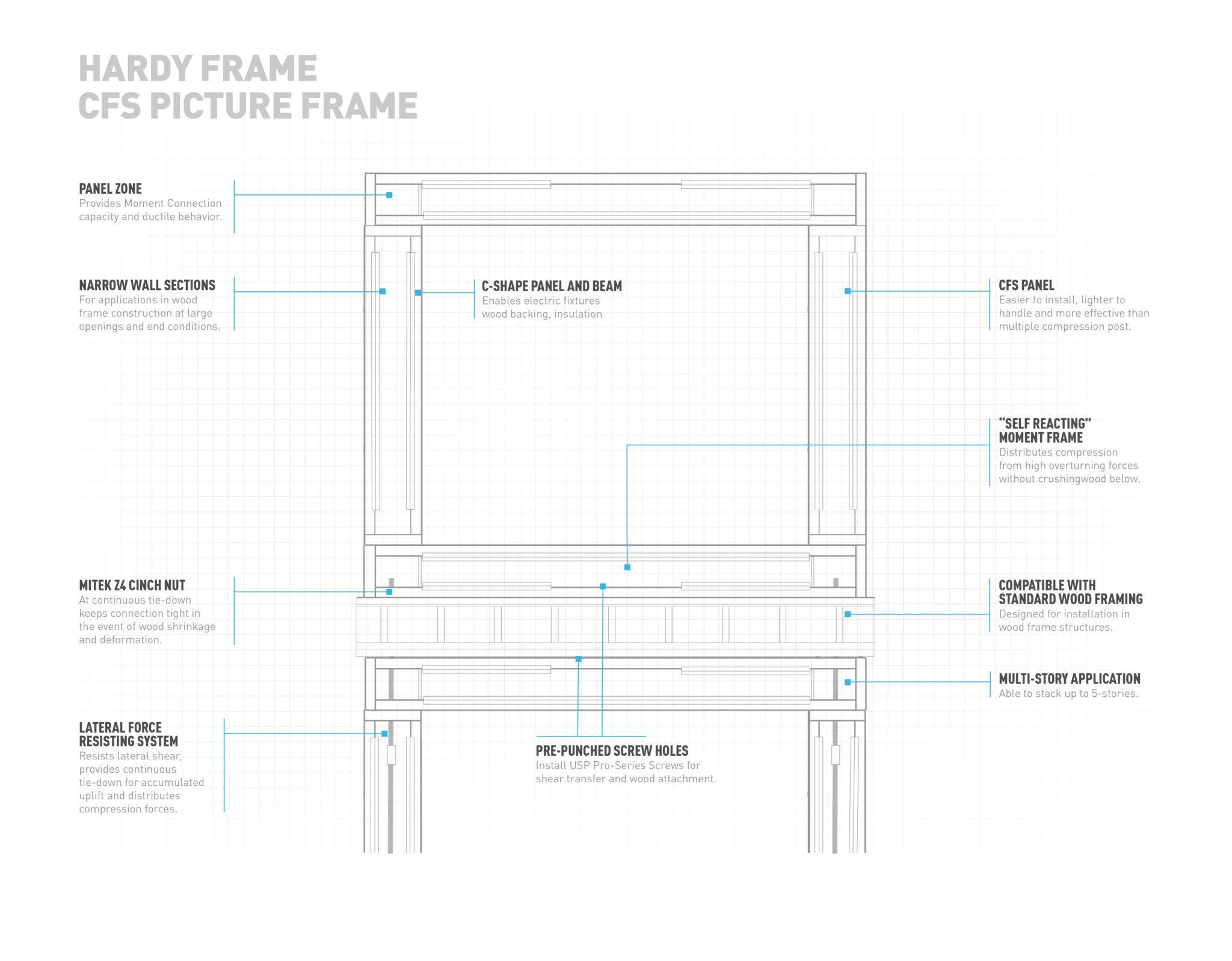

Hardy Frame CFS Picture Frame

The new, easily stackable Hardy Frame® CFS Picture Frame is a revolution in shear wall technology. This standardized cold-formed steel moment frame has been specifically designed for multi-story, light-wood frame construction. The innovative design distributes compression over more wall length that extends below window openings where vertical members can’t be installed, thereby allowing larger window openings and greater design options.

Z4 Cinch Nut
The Hardy Frame CFS Picture Frame uses our unique continuous self-ratching Z4 system, connections stay tight even when wood members shrink. Z4 is used in multi-story buildings to transfer uplift tension forces that result from earthquake and wind loading to the foundation.
